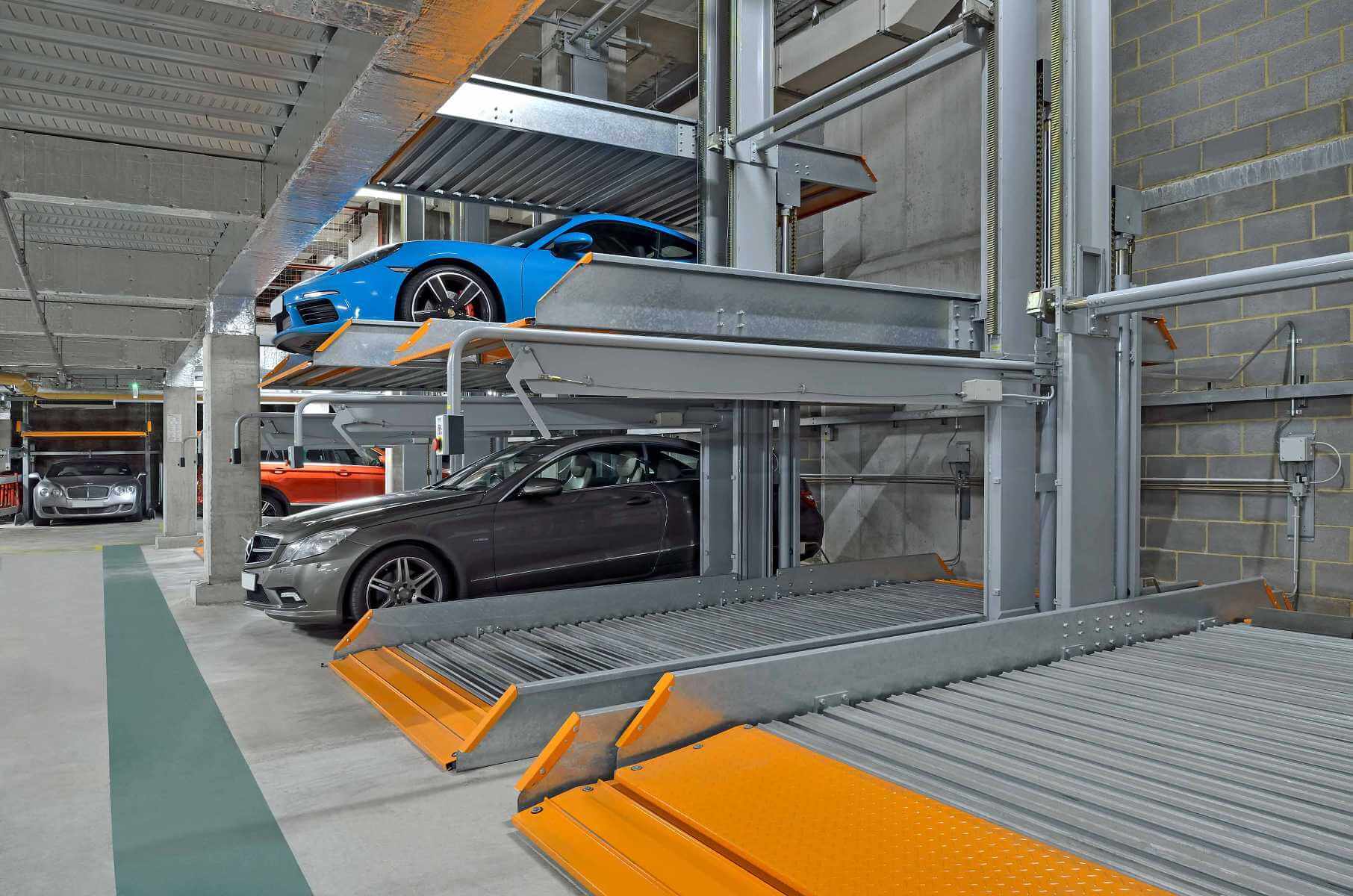

The SingleUp 3015 is a real riser system: if sufficient room height is available, up to three cars can be parked in a small area. The two upper parking spaces can be provided, for example, for long-time parkers, and the lower one for short-time parkers. The lower parking space must always be empty in order for the platform to be lowered. This system can be subsequently integrated in existing buildings.

SPECIFICATION

  • Single platforms (EB) for 3 vehicles
  • Total height of standard type: 560 cm
  • Pit depth: not required
  • Vehicle measurement: Heights 160 to 180 cm, lengths 500 cm
  • Usable platform width for standard type: 230 cm (upper parking levels),
    240 cm (mid parking levels)
  • Standard design: 2.000 kg per parking space
  • Horizontal access to all parking levels
  • Retroactive installation possible depending on local conditions
  • Platform surface: StandardGrip
  • dependent parking

FIELD OF APPLICATION

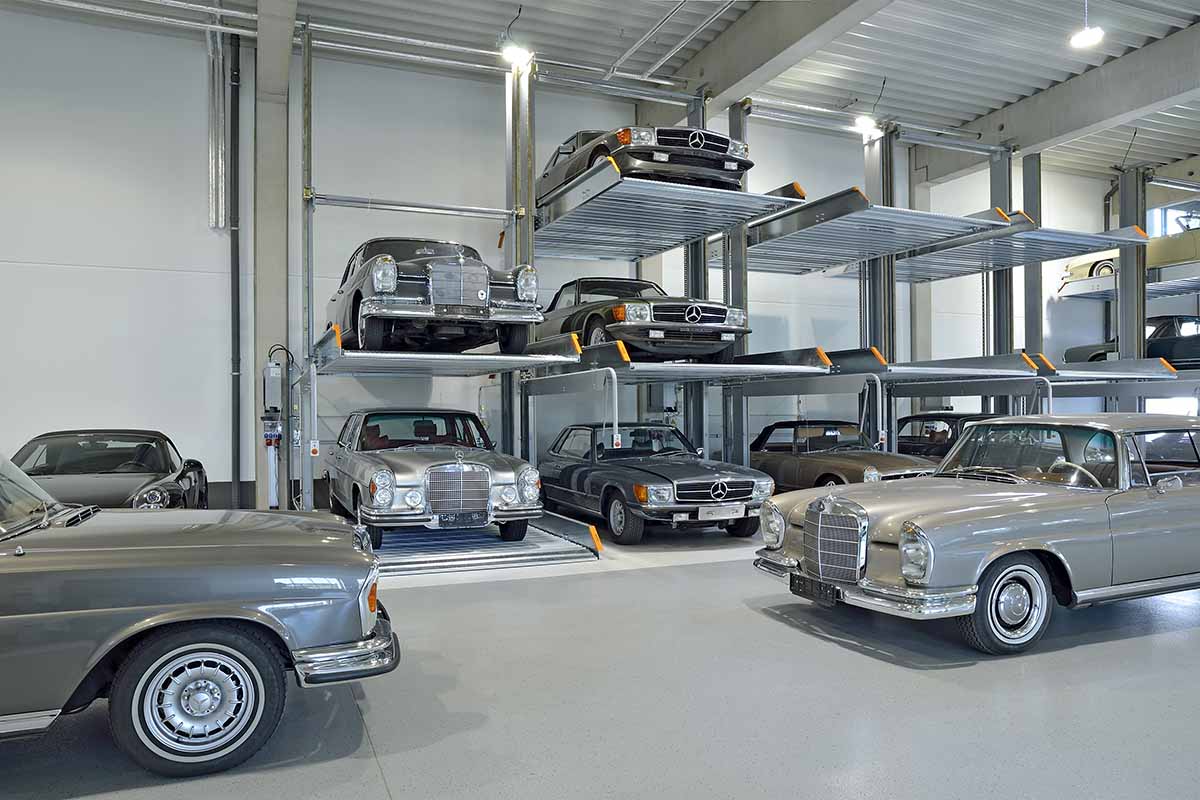

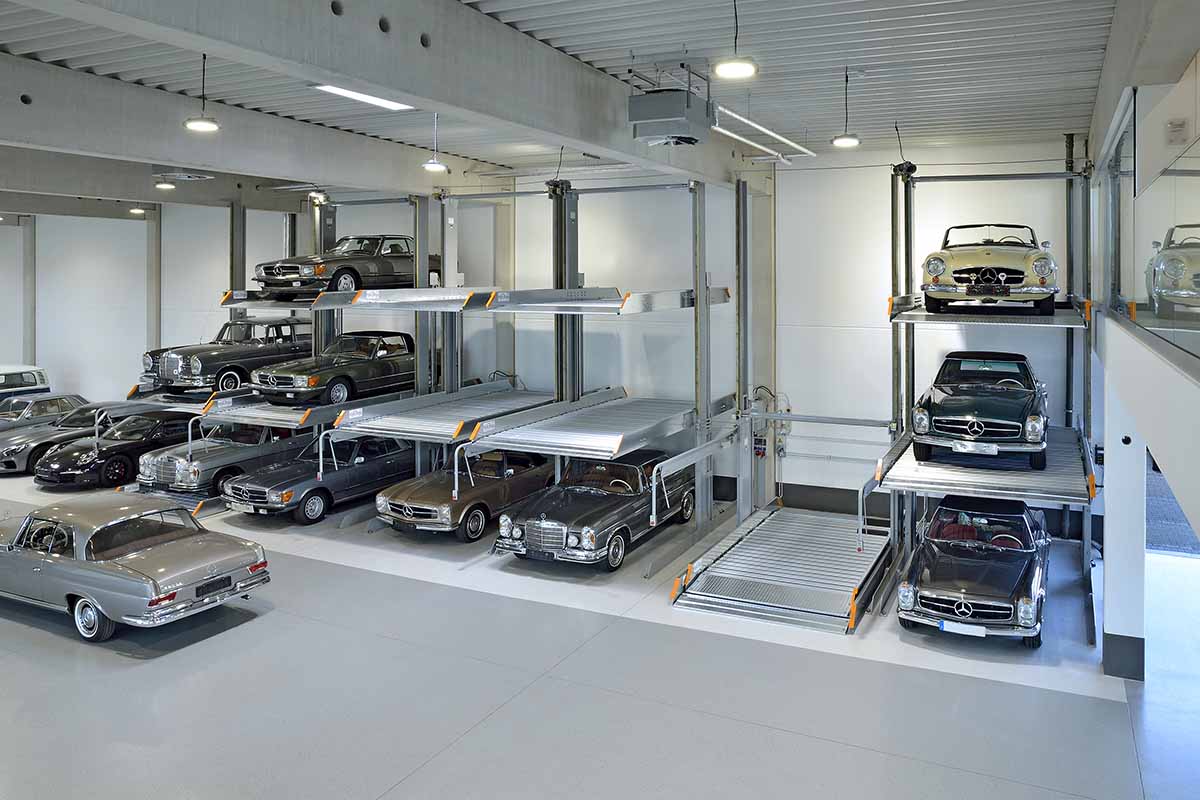

Hotels, car dealing business, car rentals, storage of classic cars,
outdoor installation, installation in backyards, long-time parking, short-time parking, subsequent installation in existing building

VIDEO PRESENTATION



PRODUCT VARIANTS

5007 1091x700 EN KMP 3015 560 2C5008 1164x700 EN KMP 3015 615 2C


PHOTO GALLERY

166 600x800 Venezuela 1167 600x800 Venezuela 2169 400x592 Venezuela 4170 400x592 Venezuela 5SingleUp 3015 003
